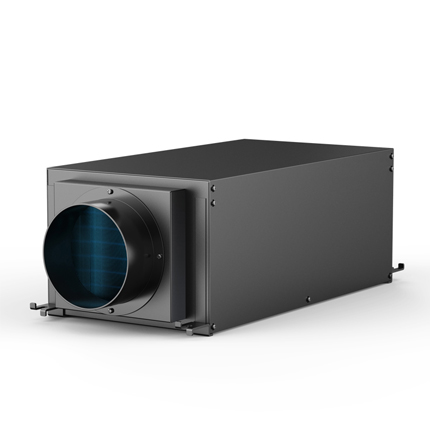

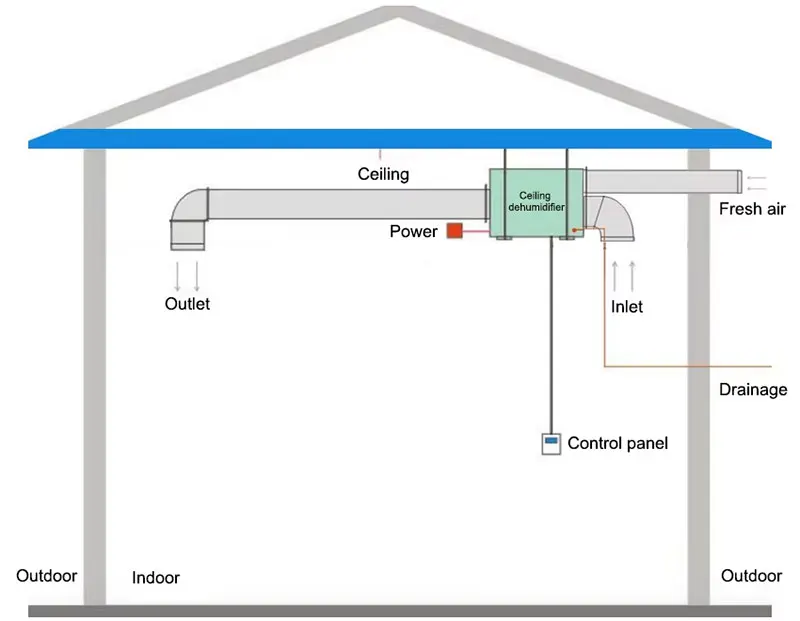

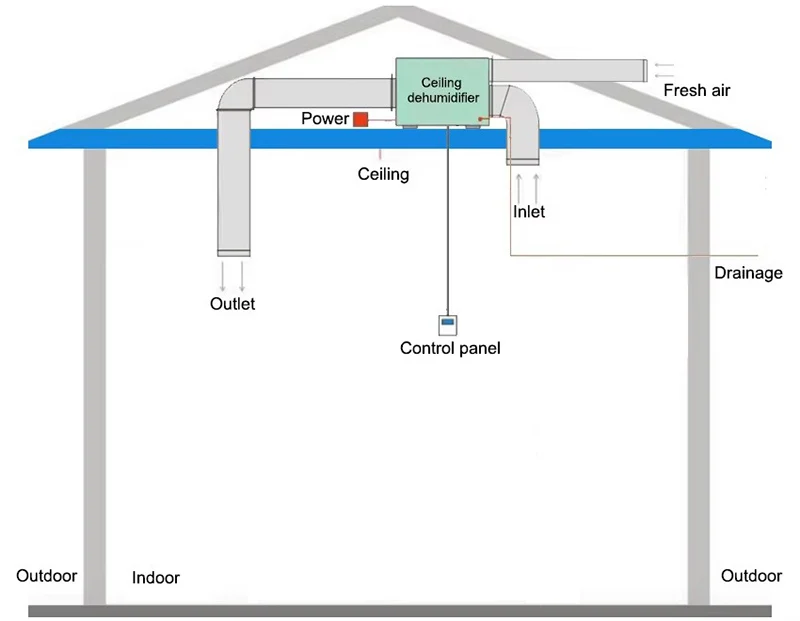

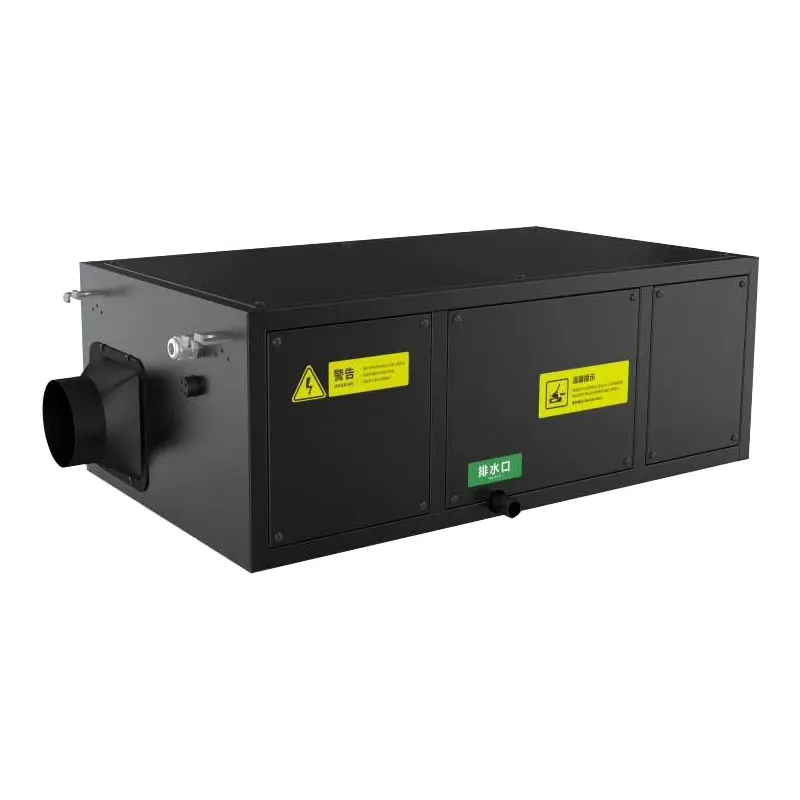

Ceiling Installation Pipeline Greenhouse Industrial Exploration Growth Chamber Dehumidifier

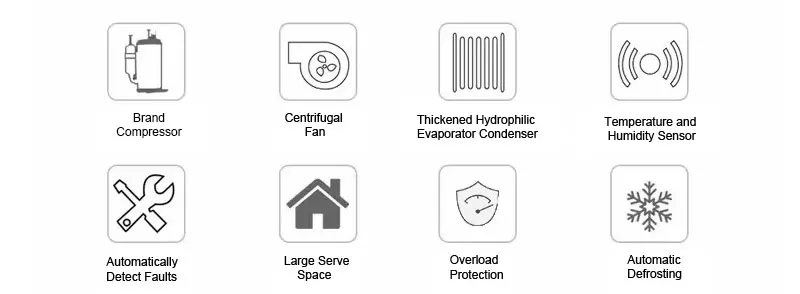

Advantages of Ceiling Dehumidifier

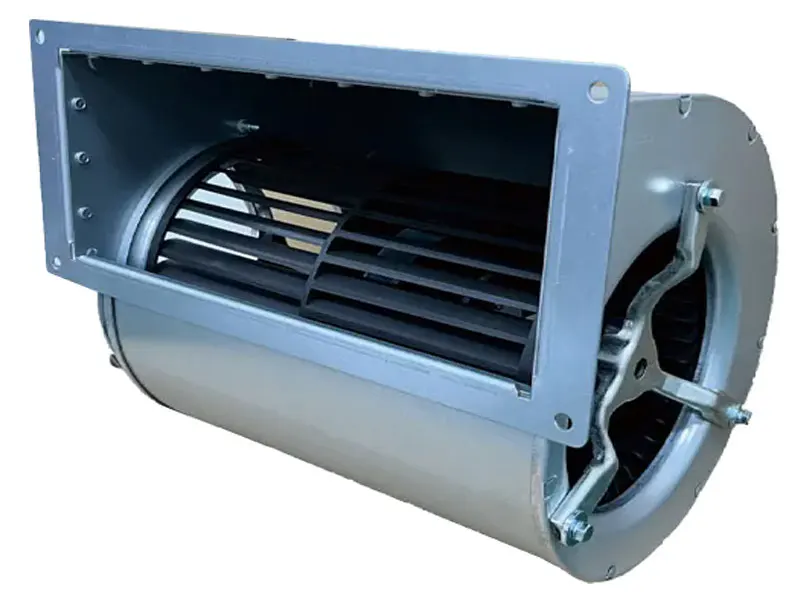

DC Invertter Motor Centrifugal fan

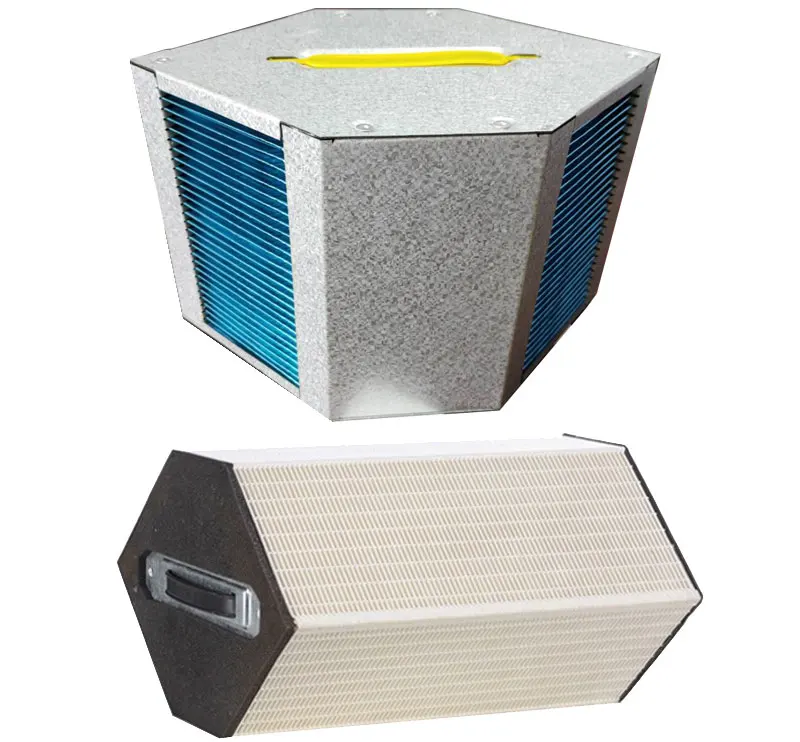

Two kinds of Heat Exchanger Cores for Selection

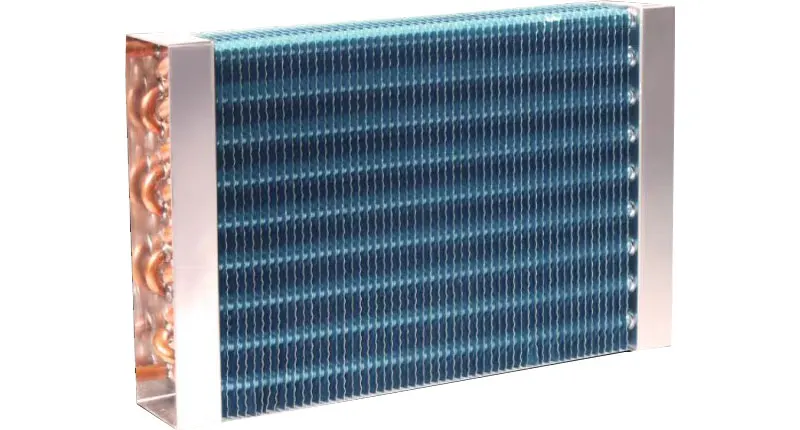

Aluminum Fin Hydrophilic Membrane Condenser

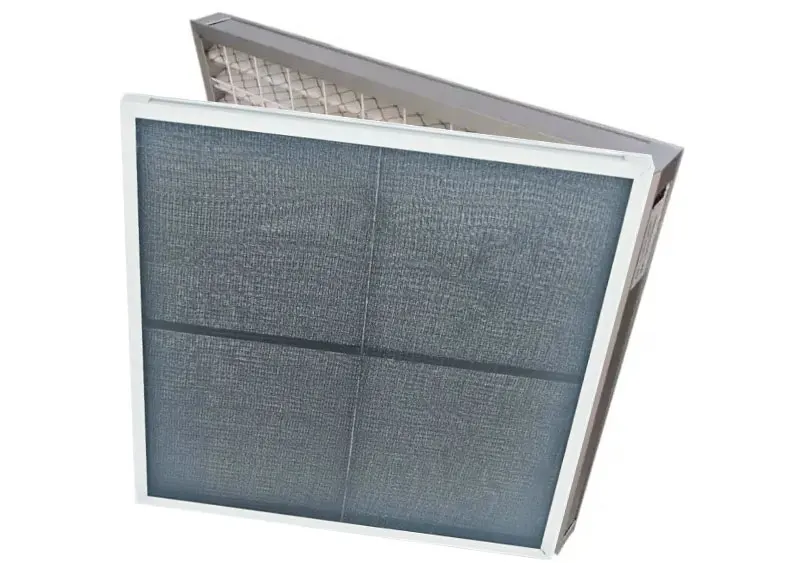

Double Layer Filtration

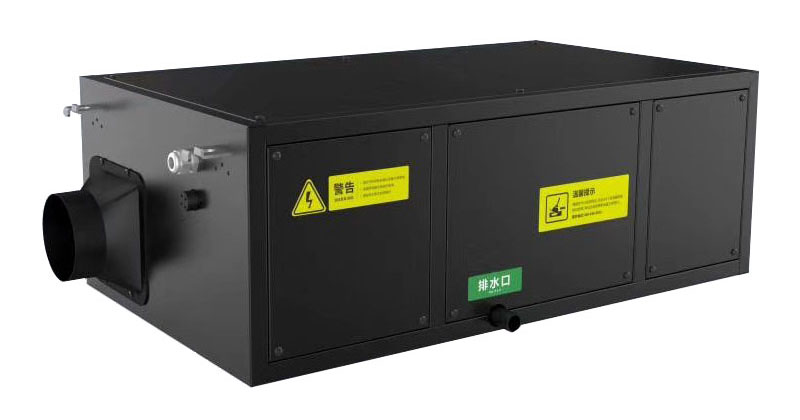

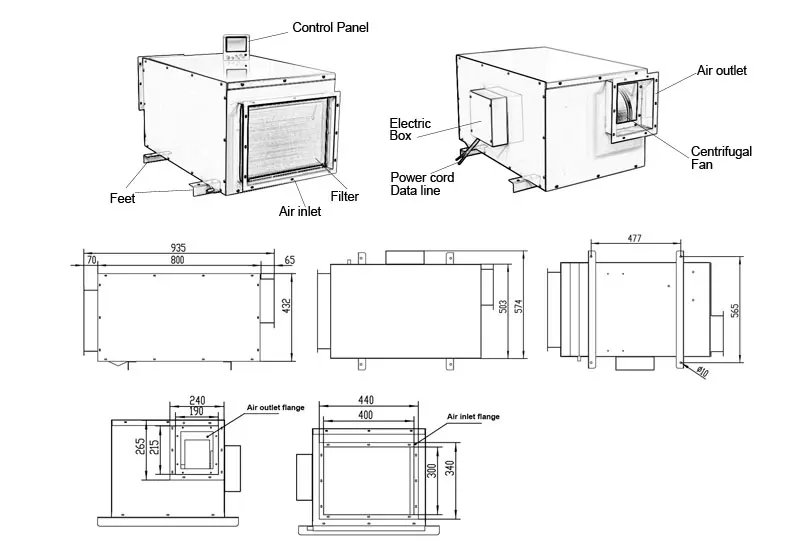

Size of One Model
Main Parameters of Ceiling Mounted Dehumidifier
| Model No. | ZE-CD20 | ZE-CD26 | ZE-CD30 | ZE-CD38 | ZE-CD50 | ZE-CD58 | ZE-CD90 | ZE-CD130 | ZE-CD138 | ZE-CD150 |
| capacity | 20 lt/day | 26 lt/day | 30 lt/day | 38 lt/day | 50 lt/day | 58 lt/day | 90 lt/day | 130 lt/day | 138 lt/day | 150 lt/day |
| air flow | 250 m3/h | 300 m3/h | 500 m3/h | 500 m3/h | 650 m3/h | 650 m3/h | 800 m3/h | 900 m3/h | 1000 m3/h | 1200 m3/h |
| outlet pressure | 80 Pa | 80 Pa | 100 Pa | 100 Pa | 100 Pa | 100 Pa | 150 Pa | 150 Pa | 150 Pa | 180 Pa |
| power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| rated current | 1.8 A | 2.5 A | 2.5 A | 2.5 A | 3.5A | 6.0 A | 7.5 A | 9.0 A | 10.0 A | 10.0 A |
| rated power | 0.35 kw | 0.45 kw | 0.73 kw | 0.73 kw | 0.91 kw | 0.91 kw | 1.5 kw | 1.7 kw | 2.1 kw | 2.2 kw |
| working temp. | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ | 5℃ ~ 38℃ |
| applying space | 10 ~ 25 sqm | 20 ~ 35 sqm | 40 ~ 50 sqm | 40 ~ 50 sqm | 50 ~ 60 sqm | 50 ~ 60 sqm | 90 ~ 120 sqm | 10 ~ 25 sqm | 100 ~ 130 sqm | 130 ~ 170 sqm |
| sound level | ≤40 dB | ≤40 dB | ≤45 dB | ≤45 dB | ≤50 dB | ≤50 dB | ≤50 dB | ≤50 dB | ≤55 dB | ≤55 dB |
| net weight | 26 kg | 27 kg | 53 kg | 546 kg | 60 kg | 56 kg | 70 kg | 74 kg | 77 kg | 78 kg |
| overall size (mm) | 545*375*200 | 545*375*200 | 630*735*220 | 660*630*420 | 690*760*220 | 660*630*420 | 935*630*480 | 935*630*480 | 935*630*480 | 935*630*480 |
| flange size air inlet (mm) | 212*160 | 212*160 | 480*165 | 440*340 | 480*165 | 440*340 | 440*340 | 440*340 | 440*340 | 440*340 |
| flange size air outlet (mm) | 60*78 | 60*78 | 240*155 | 265*244 | 240*155 | 265*244 | 265*244 | 265*244 | 265*244 | 265*244 |
Working Principle of Ceiling Dehumidifier
