hot sales low molsieve rotary moisture absorptiom rotor for desiccant wheel dehumidifier

High-Performance Modified Molecular Sieve Dehumidification Wheel Features

High-Performance Composite Materials: Provides superior moisture absorption across a wide humidity and temperature range, enabling deep and stable drying. adhesive rate of active molecular sieve is as high as 79%, and its static moisture absorption can reach about 40% of dry weight.

Precision Manufacturing for Superior Efficiency: Tight tolerance control minimizes air bypass, optimizing overall energy efficiency and dehumidification performance.

Washable for Low Maintenance Costs: The washable drying roller design effectively restores performance and significantly extends rotor life.

^{Fire Resistance and High Surface Compressive Strength}
The test results in accordance with ASTM E84-18b confirmed its fire resistance, with a flame spread index of 0 and a smoke developed index of 0, along with a surface compressive strength exceeding 200 kPa.

Products Structure

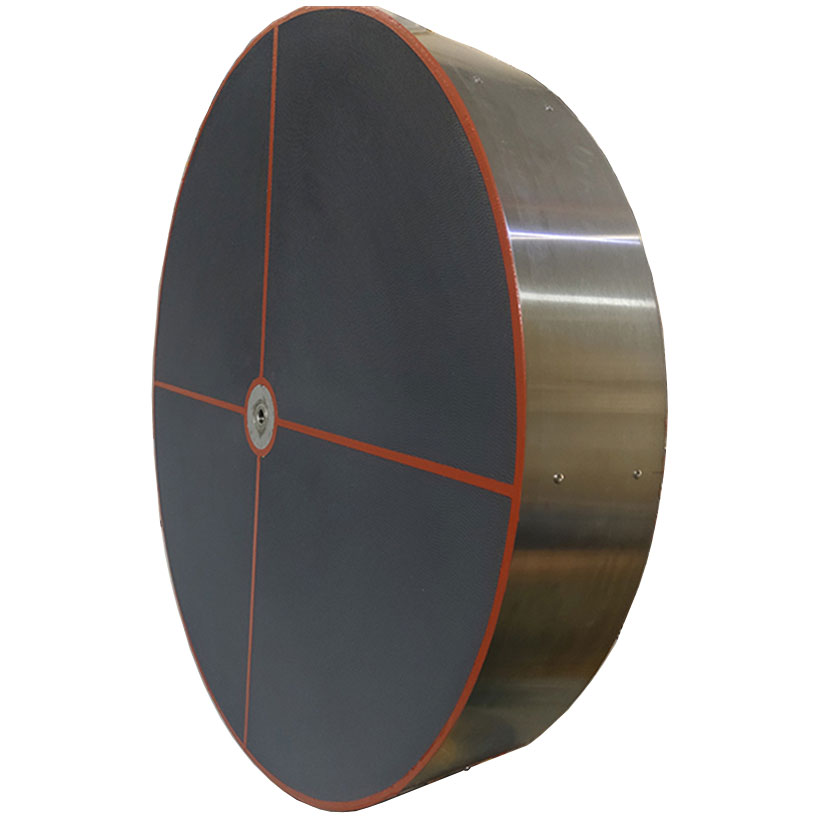

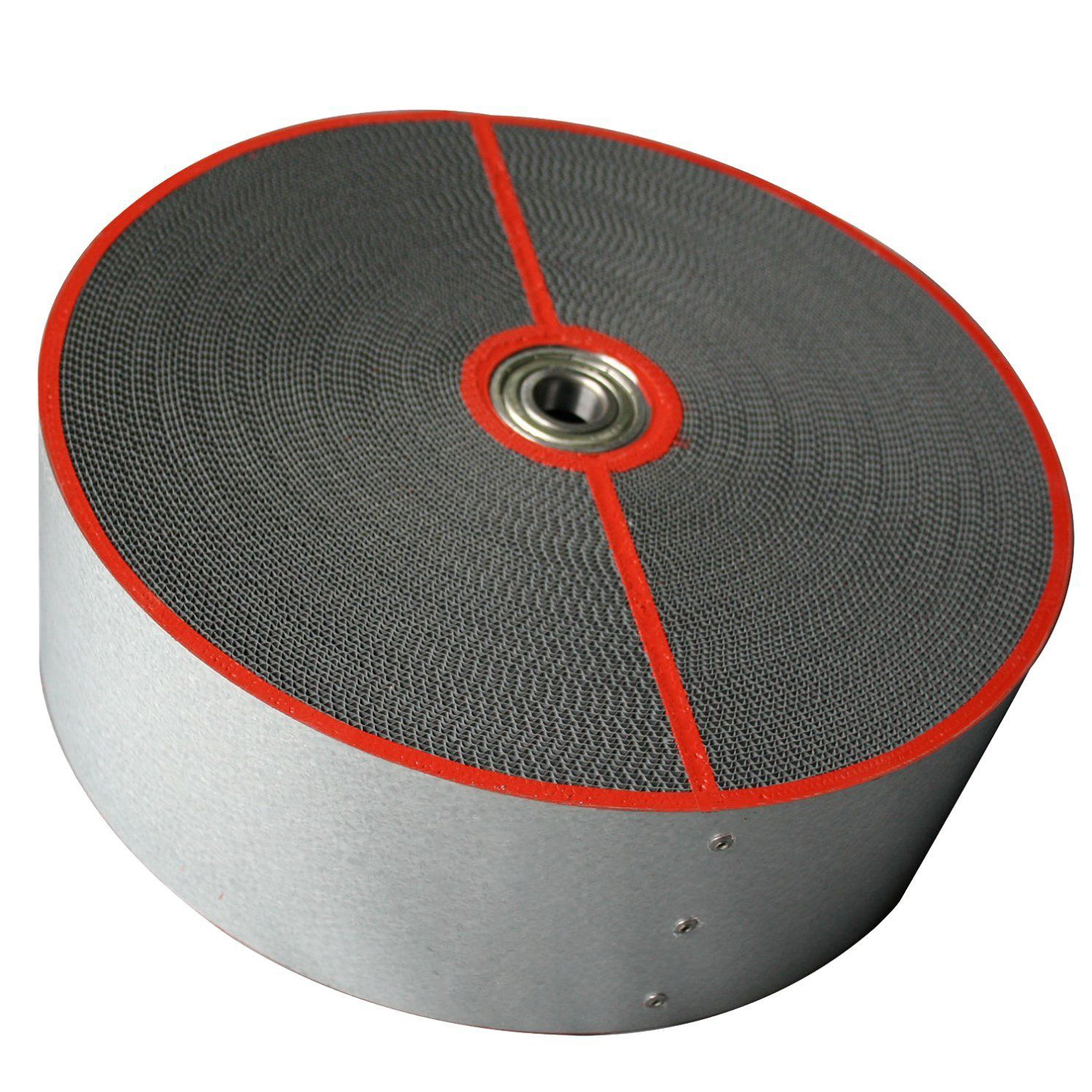

The desiccant rotor is a high capacity desiccant media captivated in a perimeter band with radial spokes. The spokes attach to a central hub with integral sealed ball bearings. The sealed bearings ride on a solid center shaft with spacer plates attached to the cassette structure with shoulder screws.

ZOUWEY’s Molecular Sieve Desiccant Rotor have below Features

1.  high competence and reliability.

2.  CNC fabricated unit and have powder coated finishing

3.  hard face finish on rotor`s edge ensures long life.

4.  coating helps good sealing for media and seals.

5.  appropriate for electrical, steam, thermal fluid.

6.  excellent moisture removal capacity at relatively economical energy.

7.  rotor frame complete set at perimeter for industrial quality and durability.

8.  rotor is non-flammable.

9.  comfortable to all major components.

10. durable for continuous hassle free operation.

11. easy serviceability and operation without any maintenance.

12. water washable, and are quick and easy to service.

13. made of alternate flat and corrugated inorganic fiber of very uniform pitch and height.

14. available in non-standard sizes

15. Honeycomb cell height: 1.8-3.4mm, low height can Increased absorption area

Application of Desiccant Rotor Dehumidifier

. Schools, universities, dormitories;

. Offices, condominiums, apartments;

. Smoking lounges, casinos;

. Hospitals, nursing homes, day care centers;

. Hotels, motels, department stores;

. Clean rooms, circuit board, chip manufacturing;

. Breweries;

. Swimming pools, sports arenas;

. Convention centers, airports, prisons;

. Bus and train maintenance facilities;

. Welding, foundry, casting areas;

. Printing operations;

. All humidity controlled spaces; and

. Product drying operations.

Products Dimensions

Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requirements.

Products Patent Certificates

Operation Diagram of Desiccant Rotor Dehumidifier (Unit)

Desiccant Rotor can be used at Dehumidifier or Dehumidifier Unit

FAQ
Q1: What's your temrs of trade?
EXW, FOB, CFR, CIF, DDU, DDP.

Q2: What's your terms of payment?
T/T, L/C, Western Union or Paypal.

Q3: How about your delivery time?
It is 15 to 20 days normally. The specific delivery time depends on the items and the quantity of your order.

Q4: What's your terms of packing?
The package of desiccant rotor is polyfoam and MDF case. It will be very safe for shipping.

Q5: Can you produce according to the samples?
Generally, we offer customized services.

Q6: What's your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay sample cost and courier cost.

ZWS rotor is used for normal humidity and low dew point operation in high regeneration temperature (90-150℃), and suitable for most dehumidification applications.
It is cost-effective and with good dehumidification performance in wide range of applications.
