Electric 220V Commercial & Industrial Desiccant Rotor Dehumidifier for Farm Construction Home Use & Industry
Main Features
1.Quality desiccnt rotor,washable,10 years lifetime;
2.Equipped with an electric PTC regeneration heating;
3.Strong and robust construction with 1.2mm thickness;
4.Double layers heater box,Armstrong insulation is used to avoid heat loss and condesation;
5.SCR(silicon controlled rectifier) constant temperature controling system ensures inside temperature constant and promise the reliable and stable performance ;
6.Front & Back access door design for easier maintenance and troubleshooting;
7.Process air inlet and dry air outlet located at the same side for easier installation;
8.Customized filters,G4 efficiency;
9.Auto stop protection function for Rotor;
10.ABB,OMRON and Schneider electrical accessories;
11.Delay time protection circuit & fault locater system;
12.Humidistat is used,a better way to control humidity

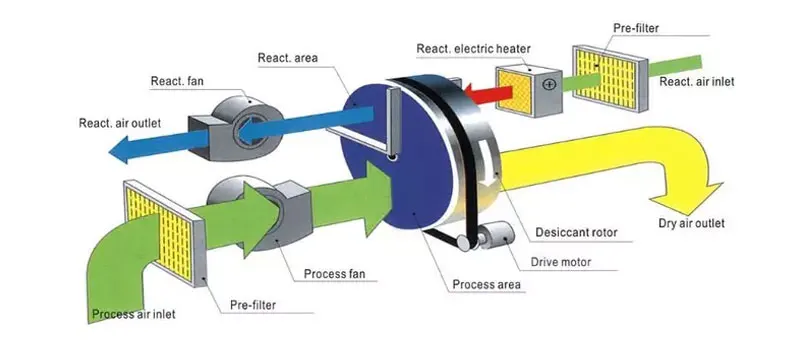

Working Principle of Rotary Dehumidifier
All Models of Desiccant Rotor Dehumidifier
| Model | ZWFDD60 | ZWFDD200 | ZWFDD400 | ZWFDD600 | ZWFDD800 |
| dehumidifing capacity (T:20℃, RH:60%) | 0.25kg/h | 0.6kg/h | 2.5kg/h | 3.0kg/h | 4.5kg/h |
| process air flow | 60m3/h | 220m3/h | 420m3/h | 580m3/h | 850m3/h |
| regeneration air flow | 25m3/h | 60m3/h | 130m3/h | 200m3/h | 260m3/h |
| applicable temp. (℃) | -20 ~ 70 | -20 ~ 70 | -20 ~ 70 | -20 ~ 70 | -20 ~ 70 |
| max power | 0.4kw | 1.5kw | 2.3kw | 4.5kw | 6.0kw |
| power rating | 0.38kw | 1.2kw | 2.0kw | 3.8kw | 5.5kw |
| voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 380V 50Hz |
| current | 1.8A | 2A | 10A | 20A | 12A |
| dimension (mm) | 313*287*328 | 442*292*678 | 442*292*678 | 585*415*860 | 877*640*1232 |
| net wet | 15kg | 30kg | 45kg | 65kg | 140kg |
| Model | ZWFDD1000 | ZWFDD1200 | ZWFDD1500 | ZWFDD2500 | ZWFDD3000 |
| dehumidifing capacity (T:20℃, RH:60%) | 7.5kg/h | 8.5kg/h | 10kg/h | 12kg/h | 19kg/h |
| process air flow | 1100m3/h | 1250m3/h | 1550m3/h | 2550m3/h | 3250m3/h |
| regeneration air flow | 400m3/h | 450m3/h | 580m3/h | 925m3/h | 1100m3/h |
| applicable temp. (℃) | -20 ~ 70 | -20 ~ 70 | -20 ~ 70 | -20 ~ 70 | -20 ~ 70 |
| max power | 11kw | 13kw | 15kw | 27kw | 30kw |
| power rating | 9kw | 11kw | 13kw | 24kw | 27kw |
| voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| current | 18A | 22A | 26A | 50A | 60A |
| dimension (mm) | 877*640*1232 | 880*696*1218 | 880*696*1218 | 1312*856*1300 | 1312*856*1300 |
| net wet | 160kg | 170kg | 180kg | 280kg | 300kg |
Application Places of Rotary Dehumidifier
